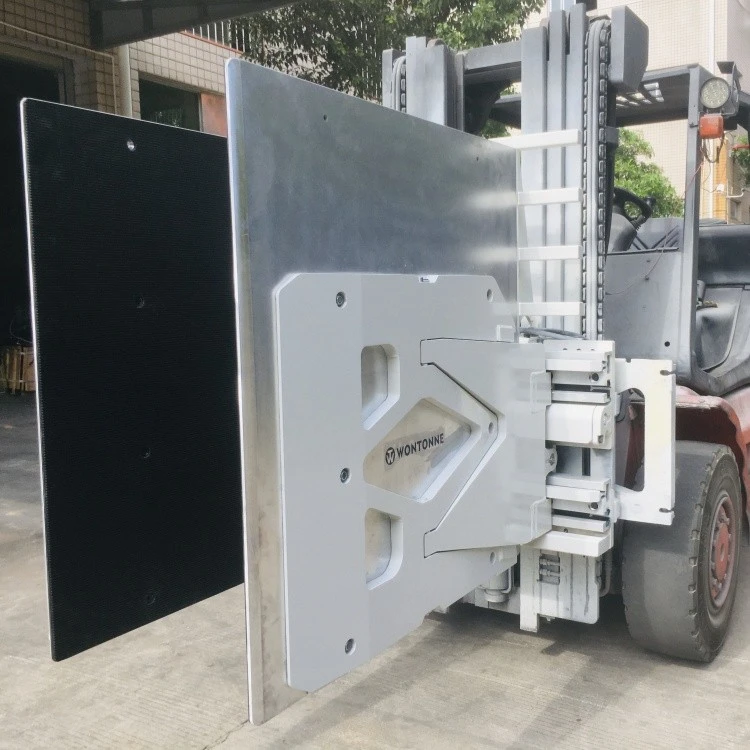

15E Home Appliance Clamps

Capacity: 1200kg-1600kg
Mounting: ISO 2A、ISO 3A
Frame Width: 1040-1400mm
Weight:715-876kg
Send Inquiry
Product Introduction

Products Description

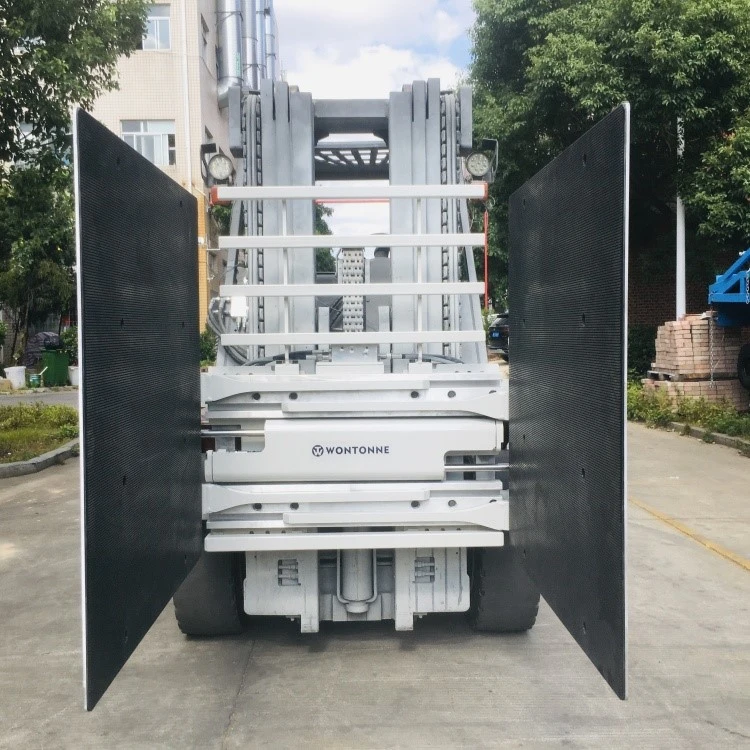

product-750-750



Carton Clamps

The excellent design of the carton clamp makes it suitable for handling and stacking more expensive goods.

1. The flexible joint design between the arm and the contact pad makes it easy to adjust the angle to clamp the goods.

2. The aluminum plate is durable and has a small weight. The vulcanization process is used between the aluminum plate and the rubber plate, of which the adhesion is firm. The large contact area can effectively disperse the force and protect the goods.

The thickness of the entire splint is thin, making it easy to work in tightly stacked spaces

3. Load guard design with good view.

4. Four-stage pressure regulating valve can adjust the clamping pressure according to the pressure requirements of different goods to protect the goods from damage

5. High-quality steel material of overall frame to ensure durability.

6. The quick-release side-shift valve of the main control hydraulic system has a two-way overflow function to ensure the synchronization of the arms.

7. The positive feedback oil circuit design optimizes the speed of the clamp arm while reducing energy consumption

8. The sliding support with superior performance has a long service life.




Product Parameters




Wontonne-Forklift-Attachment-Carton-Clamps



Capacity Load Center Model No. Mounting
Class
Opening
Range
Arm
Length
Arm
Height
Arm
Thickness
Frame
Width
Vertical
Center of
Gravity
Horizontal
Center of
Gravity
Weight Effective
Thickneess
Cap. LC     O A B D C VCG HCG M ET
kg mm     mm mm mm mm mm mm mm kg mm
1400 610 CCS15E-005A ISO 2A 560-1930 1200 1220 90 1040 359 316 715 127
1400 610 CCS15E-005B ISO 3A 560-1930 1200 1220 90 1040 315 361 718 127
1200 710 CCS15E-006A ISO 2A 560-1930 1420 1220 90 1040 366 423 820 127
1200 710 CCS15E-006B ISO 3A 560-1930 1420 1220 90 1040 368 422 823 127
1200 710 CCS15E-030A ISO 2A 760-2130 1420 1220 90 1040 366 423 822 127
1200 710 CCS15E-030B ISO 3A 760-2130 1420 1220 90 1040 368 422 825 127
1600 610 CCS20E-005A ISO 2A 560-1930 1200 1220 90 1040 359 316 715 127
1600 610 CCS20E-005B ISO 3A 560-1930 1200 1220 90 1040 315 361 718 127
1400 710 CCS20E-006A ISO 2A 560-1930 1420 1220 90 1040 366 423 820 127
1400 710 CCS20E-006B ISO 3A 560-1930 1420 1220 90 1040 368 422 823 127
1400 710 CCS20E-030A ISO 2A 760-2130 1420 1220 90 1040 366 423 822 127
1400 710 CCS20E-030B ISO 3A 760-2130 1420 1220 90 1040 368 422 825 127
1400 710 CCS20E-047A ISO 2A 620-2400 1420 1220 90 1400 356 517 873 127
1400 710 CCS20E-047B ISO 3A 620-2400 1420 1220 90 1400 358 518 876 127




our certificates

We pass ISO9001:2015 and our main products owns CE certificate.
CE certification

CE certification

Certificate of Origin

Certificate of Origin

Import and export registration

Import and export registration

ISO 9001

ISO 9001

patent certificate

patent certificate

Trademark Certificate

Trademark Certificate




our company


WONTONNE Group has positioned itself as a trusted provider of material handling solutions since its inception. With a history spanning over 20 years, backed by substantial investments, adeptness in lean manufacturing, seamless supply chain integration and a skilled team specializing in professional design, we stand fully equipped to provide high-quality products and tailored solutions for forklift attachments, forklift trucks, as well as replacement parts for both. Furthermore, our upcoming R&D center and advanced manufacturing industrial park, covering 30,000 m2 are scheduled to be operational by the end of 2023, with an annual production capacity of 20,000 units. These facilities will play a pivotal role in our long-term development strategy. We are dedicated to delivering optimal solutions to our clients and fostering mutually beneficial partnerships with our collaborators. Tailored to your needs, our comprehensive solutions encompass both standard products and locally customized designs. These solutions are designed to bolster your competitiveness in an ever-evolving business environment. Over two decades, we have garnered favorable recognition across several markets, including China, ASEAN, Australia, South Asia, the Middle East, America and Europe. To better serve our local customers, we are now actively seeking local dealers and partners to strengthen our competitive presence in these regions. Come and join us, your participation would be greatly appreciated.




Products flow




20240607




our advantages



1 1

The use of rotators can significantly reduce labor intensity, safe and fast to complete the handling operation.




1

The overall hydraulic components have good sealing performance, reasonable design, and durability.




2 1

The front cylinder of the rotator has the advantages of strong pressure and fast speed, which makes the overall structure respond quickly and ensures the working efficiency and quality




Features




Proven durable construction design,unique rotating drive system,meet thehigh strength continuous operation.

Strong rotating driving torgue achieved the stable and reliable rotating function.Hydraulic motor fixed with reversible hydraulic lock, any angle position of lock function

Rotators give your driver the ability to quickly dump or invert a load, and then immediately return the forks to the pick-up position in one continuous motion. rotators are widely used in food processing, automotive manufacturing, chemical processing, recycling operations, smelting and casting operations, and general manufacturing-anywhere it is necessary to dump bins or tote boxes.




FAQ


Q: What are your main products?

A: Developing high-performance solutions for intralogistics with a complete range of products, including diesel forklifts, electric forklifts, LPG forklifts, electric pallet trucks, reach trucks, stackers, empty container handlers, container reach stackers and forklift attachments, and so on.

Q: What is about your warranty? What kind of after-sales service can you provide?

A: One year or 2000 working hours which comes first.
During the warranty, we will send it to you for free by courier.
And 24-hour quick-response pre-sale/post-sale online technical support service.

Q: How fast is delivery out?

A: Some popular models has stocks could be sent out in 1-2 days. Standard configuration products around 2-3 weeks. The production period for Customizing products is 3-4 weeks.

Q: Can you customize and design to the client's requirements?

A: Wontonne provides ODM service, we will try our best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as the client needs.

Q: Which is the port of yours? What kind of transshipment service do you offer?

A: Usually, we ship through Xiamen port, but we can also ship through inland transport to your designated port for shipment. We have a vibrant shipping experience, and provide FCL and LCL shipment service.
What Certificate do you have?

Q: Wontonne workshop meets with the ISO9001 Quality System. All of our products have CE certificates. Some of our products meet the EPA requirements.

A: What are your terms of payment?
T/T, L/C
