Standard Push Pull Forklift
video

Standard Push Pull Forklift

Capacity: 1600kg-2000kg
Mounting: ISO 2A、ISO 3A
Push Stroke: 1270mm
Weight:660-696kg
Send Inquiry
Product Introduction

Products Description




product-750-750

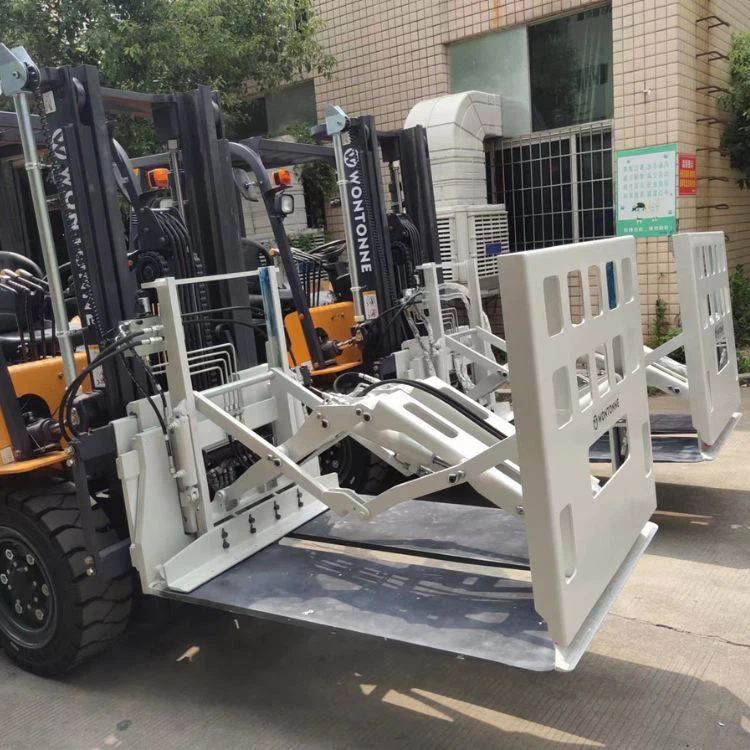

Push Pull Forklift

The overall structure of the push pull has a wide field of vision, dexterity, and easy operation;

Load and unload goods without pallets, and use low-cost sliding support to solve the pallet storage space;

The alloy fork plate is durable, smooth and smooth, which can avoid damage to parts of the cargo that the slip sheet contacts during operation

Push pull can pull and push light cargo pack safely with the help of slip sheet instead of pallet safely and efficiently.Only use slip sheet to realize loading stacking and reusecarboard (only for sheet-save model).lt can greatly improve production efficiency,saving the cost.lt can be widely used in electronics,food,light industry and other industries.




Product Parameters

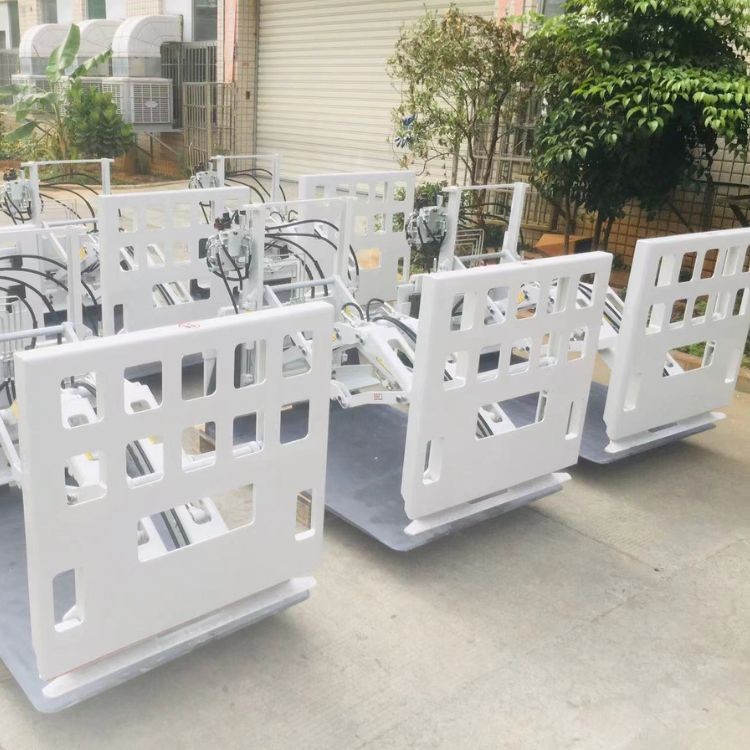

Wontonne-Forklift-Attachments-Standard-push-pull-sheet-save-types



Capacity Load Model Mounting Faceplate Platen Outer Push Min. Truck Horizontal Weight Effective
Center No. Class Size Size Platen Stroke Carriage Center of Thickness
          Spacing   Width Gravity
kg mm     A * B W * L C S mm HCG kg ET
mm mm mm mm mm mm
Sheet-Save Type
1600 600 PAS16E-001A ISO 2A 1015*1000 455*1220 1020/1120 1270 920 325 660 270
1600 600 PAS16E-001B ISO 3A 1015*1000 455*1220 1020/1120 1270 920 312 696 270
2000 600 PAS20E-001A ISO 2A 1015*1000 455*1220 1020/1120 1270 920 329 664 270
2000 600 PAS20E-001B ISO 3A 1015*1000 455*1220 1020/1120 1270 920 317 671 270




our certificates

We pass ISO9001:2015 and our main products owns CE certificate.
CE certification

CE certification

Certificate of Origin

Certificate of Origin

Import and export registration

Import and export registration

ISO 9001

ISO 9001

patent certificate

patent certificate

Trademark Certificate

Trademark Certificate




our company


WONTONNE Group has positioned itself as a trusted provider of material handling solutions since its inception. With a history spanning over 20 years, backed by substantial investments, adeptness in lean manufacturing, seamless supply chain integration and a skilled team specializing in professional design, we stand fully equipped to provide high-quality products and tailored solutions for forklift attachments, forklift trucks, as well as replacement parts for both. Furthermore, our upcoming R&D center and advanced manufacturing industrial park, covering 30,000 m2 are scheduled to be operational by the end of 2023, with an annual production capacity of 20,000 units. These facilities will play a pivotal role in our long-term development strategy. We are dedicated to delivering optimal solutions to our clients and fostering mutually beneficial partnerships with our collaborators. Tailored to your needs, our comprehensive solutions encompass both standard products and locally customized designs. These solutions are designed to bolster your competitiveness in an ever-evolving business environment. Over two decades, we have garnered favorable recognition across several markets, including China, ASEAN, Australia, South Asia, the Middle East, America and Europe. To better serve our local customers, we are now actively seeking local dealers and partners to strengthen our competitive presence in these regions. Come and join us, your participation would be greatly appreciated.




Products flow




20240607




our advantages




The overall structure of the push pull has a wide field of vision, dexterity, and easy operation;

Load and unload goods without pallets, and use low-cost sliding support to solve the pallet storage space;

The alloy fork plate is durable, smooth and smooth, which can avoid damage to parts of the cargo that the slip sheet contacts during operation



1 1

The push-pull device can quickly and safely pull and transport the goods placed on the skateboard.




1

The standard push-pull device has a side shift function, which is convenient for fine-tuning when pulling or stacking goods




2 1

The skateboard can be recycled, reused, and reduce costs




3

The design of the sequence valve group makes the operation easy




4

The chamfer platen corner can prevent the slip sheet from tearing

Ability to separate the slip sheet from the cargo and reuse the slip sheet.




7 1

The two platens of a push pull have two different spacing to choose.

The structure is strong and the vision is good






FAQ


Q: What are your main products?

A: Developing high-performance solutions for intralogistics with a complete range of products, including diesel forklifts, electric forklifts, LPG forklifts, electric pallet trucks, reach trucks, stackers, empty container handlers, container reach stackers and forklift attachments, and so on.

Q: What is about your warranty? What kind of after-sales service can you provide?

A: One year or 2000 working hours which comes first.
During the warranty, we will send it to you for free by courier.
And 24-hour quick-response pre-sale/post-sale online technical support service.

Q: How fast is delivery out?

A: Some popular models has stocks could be sent out in 1-2 days. Standard configuration products around 2-3 weeks. The production period for Customizing products is 3-4 weeks.

Q: Can you customize and design to the client's requirements?

A: Wontonne provides ODM service, we will try our best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as the client needs.

Q: Which is the port of yours? What kind of transshipment service do you offer?

A: Usually, we ship through Xiamen port, but we can also ship through inland transport to your designated port for shipment. We have a vibrant shipping experience, and provide FCL and LCL shipment service.
What Certificate do you have?

Q: Wontonne workshop meets with the ISO9001 Quality System. All of our products have CE certificates. Some of our products meet the EPA requirements.

A: What are your terms of payment?
T/T, L/C

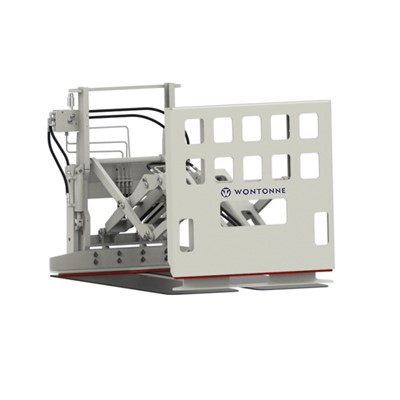

Hot Tags: standard push pull forklift, China standard push pull forklift manufacturers, suppliers, factory, Forklift Bag Load Pulls, Drop Bottom Bins, 45F Paper Roll Clamps, 15F Paper Roll Clamps, Quick Fork Mount Push Pull, Tri lateral Head Units
