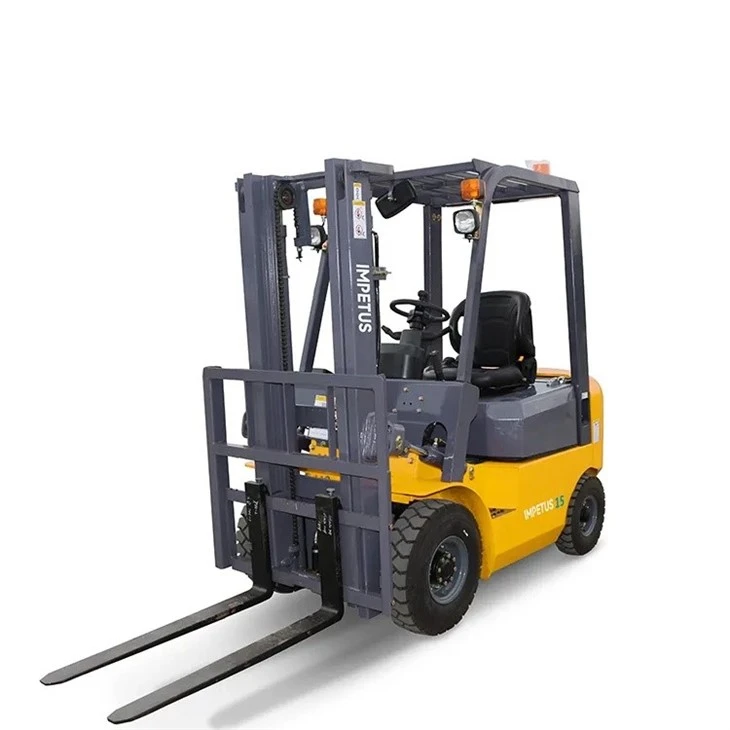

1.5 Ton Diesel Forklift FD15

The technology of this series of products originated from Japan, and its reliability, control performance, appearance and other comprehensive performance are at the high-end level of the industry, far ahead of other mainstream domestic brand products.

Send Inquiry

Product Introduction

Our Advantages

1.Reliability：Equipped with heavy-duty driving axle with final reduction drive and wheel planetary reductor for safe and reliable operation at bad working conditions.
2.High performance：Equipped with the advanced load sensing technology to supply working flow for steering system, effectively reducing system heat, saving energy and protecting environment.
3.Semi closed cab, seat, easy to operate:Experiencing comfortable driving and operation with semi-enclosed cab and anti-slip adjustable seat. Easy control of all function buttons and bars effectively reduce the driver's fatigue.
4.Easy maintenance：Removable side cover is much more conducive to inspection and simple repairs.
5.Safety:Wide vision mast provides an excellent front view and accurate disassembly of goods.The grille roof guard provides a good upper visual field for drivers.
6.Power system:Japan original ISUZU C240 or Mitsubishi S4S engine, sharply reduce the concentration of black smoke and noise at the same time, also to achieve high power, low energy consumption.

H3ce3611aa0214bdc9fe679d048f1a16bt

H257c5ebac57544628a59f0acd4457d8el

Parameters

Model	FD15	FD20	FD25
Load Centre(mm)	500	500	500
Rated capacity(kg)	1500	2000	2500
Mast	2-stage-mast or as customer required	2-stage-mast or as customer required	2-stage-mast or as customer required
Fork Size((LxWxT)(mm)	1220×122×40	1220×122×40	1220×122×40
Power	MITSUBISH/XINCHAI/ISUZU or as customer required	MITSUBISH/XINCHAI/ISUZU or as customer required	MITSUBISH/XINCHAI/ISUZU or as customer required
Length to face of fork(without fork) (mm)	3600	3640	3660
Overall Width(mm)	1150	1150	1150
Overhead Guard Height(mm)	2125	2125	2125
